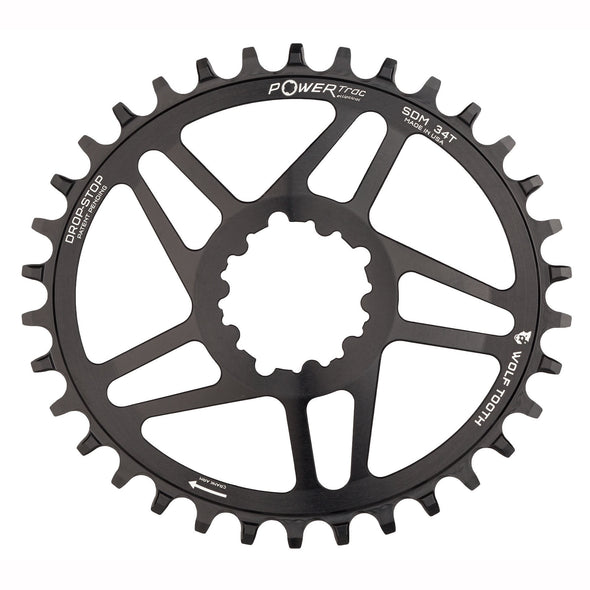

These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring.
There are 3 offsets:
Standard: 47mm chainline, 6mm offset for cyclocross and road cranks
Standard: 49mm chainline, 6mm offset for GXP and long spindle BB30
Boost: 52mm chainline, 3mm offset
BB30: 49mm chainline, 0mm offset for BB30 short spindle cranks
Fat Bikes: If you are planning to use this on an X9 or XX1 fat bike crankset with a 190/197 rear hub spacing use the 0 offset ring. If your fat bike has a 170/177 rear hub spacing, use the Standard 6mm offset.
TECH SPECS:
Design and manufactured in the Minneapolis, MN USA
Wolf Tooths patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Recommend the use of a clutch style rear derailleur for the best chain security.
Material - 7075-T6 aluminum
Colors - black
Chainline -
47mm on cyclocross and road with 6mm offset ring
49mm for standard non-boost (135/142mm rear hub spacing) with 6mm or 0mm offset (see compatibility above for which offset you need
52mm for Boost with 3mm offset (148mm rear hub spacing)
