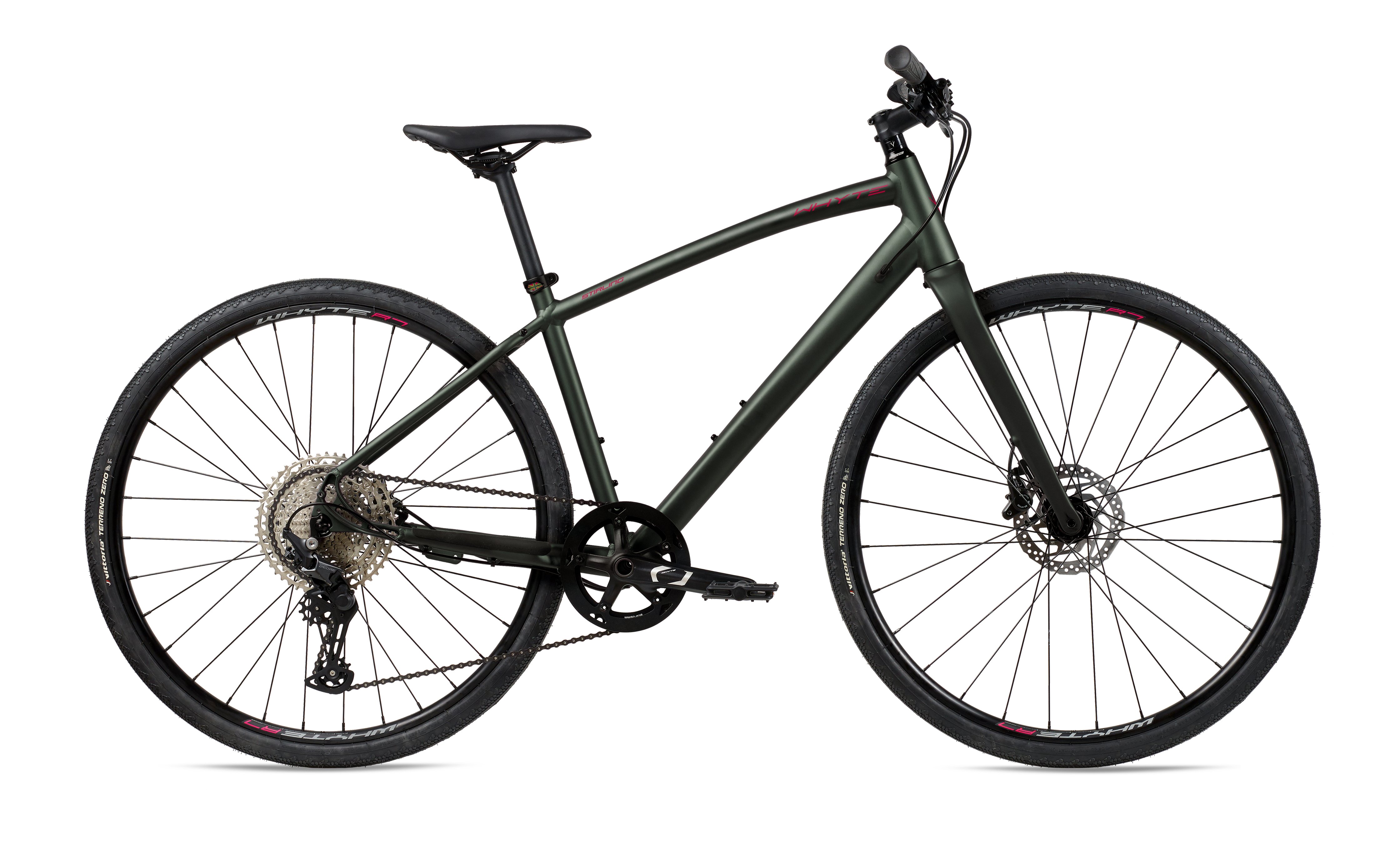

Whyte Stirling V2  -  XLarge

Whyte Stirling V2 - XLarge

Varenummer: WST4XV2
10.999,00 DKK

Lightweight 1x11 speed transmission provides reliable sequential shifting simplicity and a wide gear range.
Road chatter is smoothed out by 37c tyres combined with the carbon fork which has dropout eyelets, allowing our custom mudguards to be easily fitted.
A custom rear dropout mounts the hydraulic disc brake caliper inside the rear triangle clearing the way for a rack or mudguards and our new urban chain stays feature a useful kickstand mount.

Description
SPECIFICATION
COLOUR Matt Moss with Rose & Olive
CASSETTE Shimano CS-M5100, 11-51, 11 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
CHAIN SunRace, 11 Speed
FORK Whyte Straight Bladed full carbon, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
CRANKSET 2pcs Alloy, Narrow/Wide 42T Chainring with Guard, 11 Speed
REAR SHOCK N/A BOTTOM BRACKET Sealed Cartridge Bearings, 68mm
HEADSET FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST Whyte 2014 Alloy, 20mm Offset, 27.2mm x S/M/L 350mm, XL 400mm, 2 Bolt Clamp
REAR HUB Alloy, Double Sealed Cartridge Bearings, 32 Hole
SADDLE Whyte Custom
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Through Axle, 32 Hole, Concealed Hex Key
HANDLEBAR Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
SPOKES 2.0mm, PG, Black Stainless, Brass Nipples
STEM Whyte Alloy, S 45mm, M/L 60mm, XL 70mm Extension
RIMS Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
GRIPS Whyte Custom Dual Density Lock-on
TYRE Vittoria Terreno Zero 700 x 37c, Folding, Puncture Protection
BRAKES FRONT Shimano MT400, Hydraulic, 160mm Disc, Internal Routing
SHIFT LEVERS Shimano Deore SL-M5100, 11 Speed
BRAKES REAR Shimano MT400, Hydraulic, 160mm Disc, Internal Routing
FRONT MECH N/A
BRAKE LEVERS Shimano MT400
REAR MECH Shimano Deore RD-M5100-SGS, 11 Speed
PEDALS Fibre Reinforced Composite Platform
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice



SIZE GUIDE
S M L XL
5’1" – 5’5" 5’5" – 5’9" 5’9" – 6’1" 6’1" – 6’5"
155 - 165 cm 165 – 175 cm 175 – 185 cm 185 – 197 cm
GEOMETRY
SIZE S M L XL
A
HEAD TUBE ANGLE
69.5 70 70 70
B
SEAT TUBE ANGLE
74 73.5 73 73
C
TOP TUBE HORIZONTAL
569.4 595.2 613 626.9
D
BB HEIGHT ABOVE GROUND
268 268
271.5 271.5
E
STAND OVER HEIGHT
718
750
786
817
F
WHEEL BASE
1061.4 1078.4 1094.3 1109.3
G
CHAIN STAY LENGTH
430 430 430 430
H
SEAT POST DIAMETER
27.2 27.2 27.2 27.2
I
HEAD TUBE LENGTH
145 165 185 205
J
SEAT TUBE LENGTH
406.4 444.5 495 533
STACK 612 579 593 612
REACH 409 424 432 440
