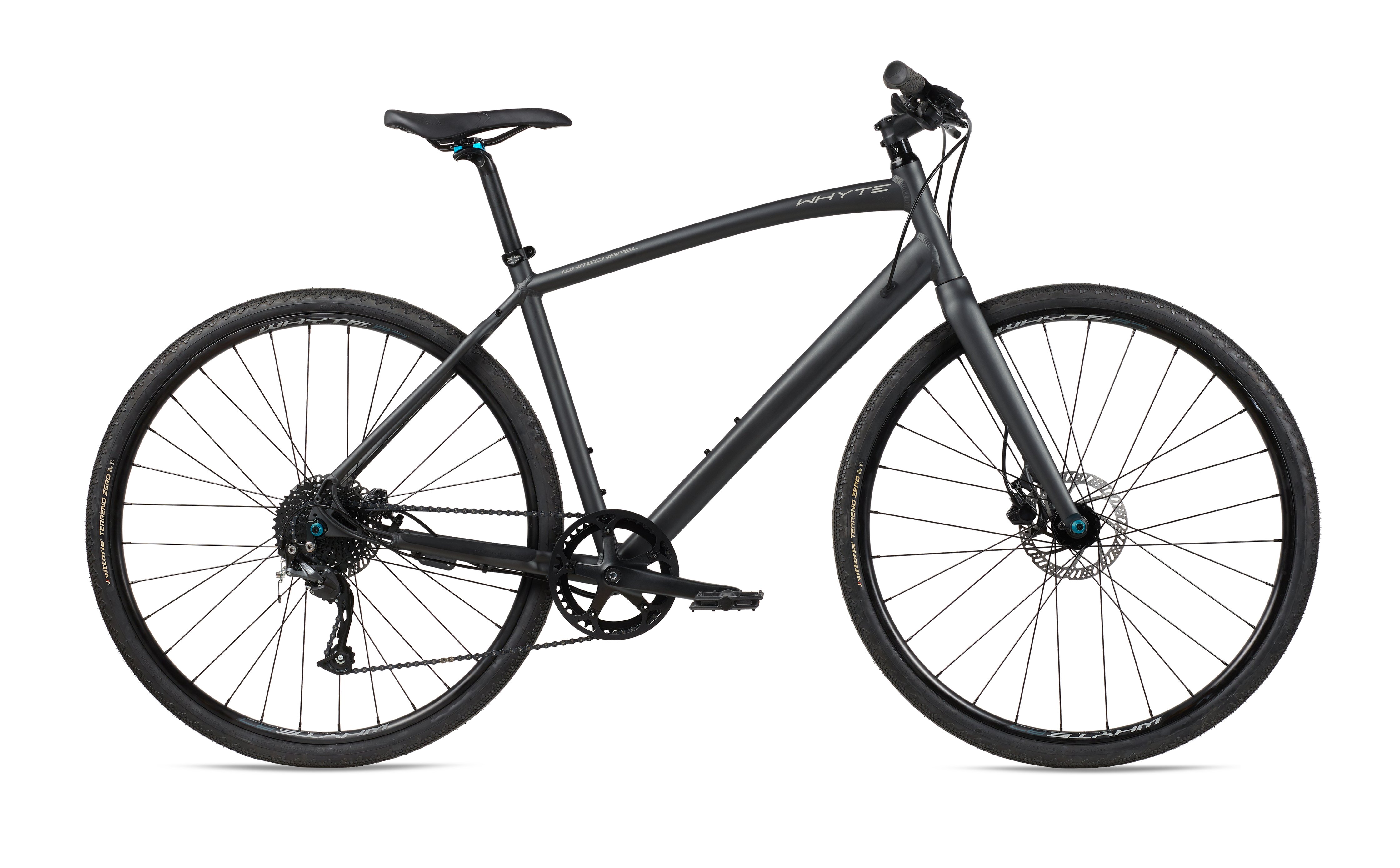

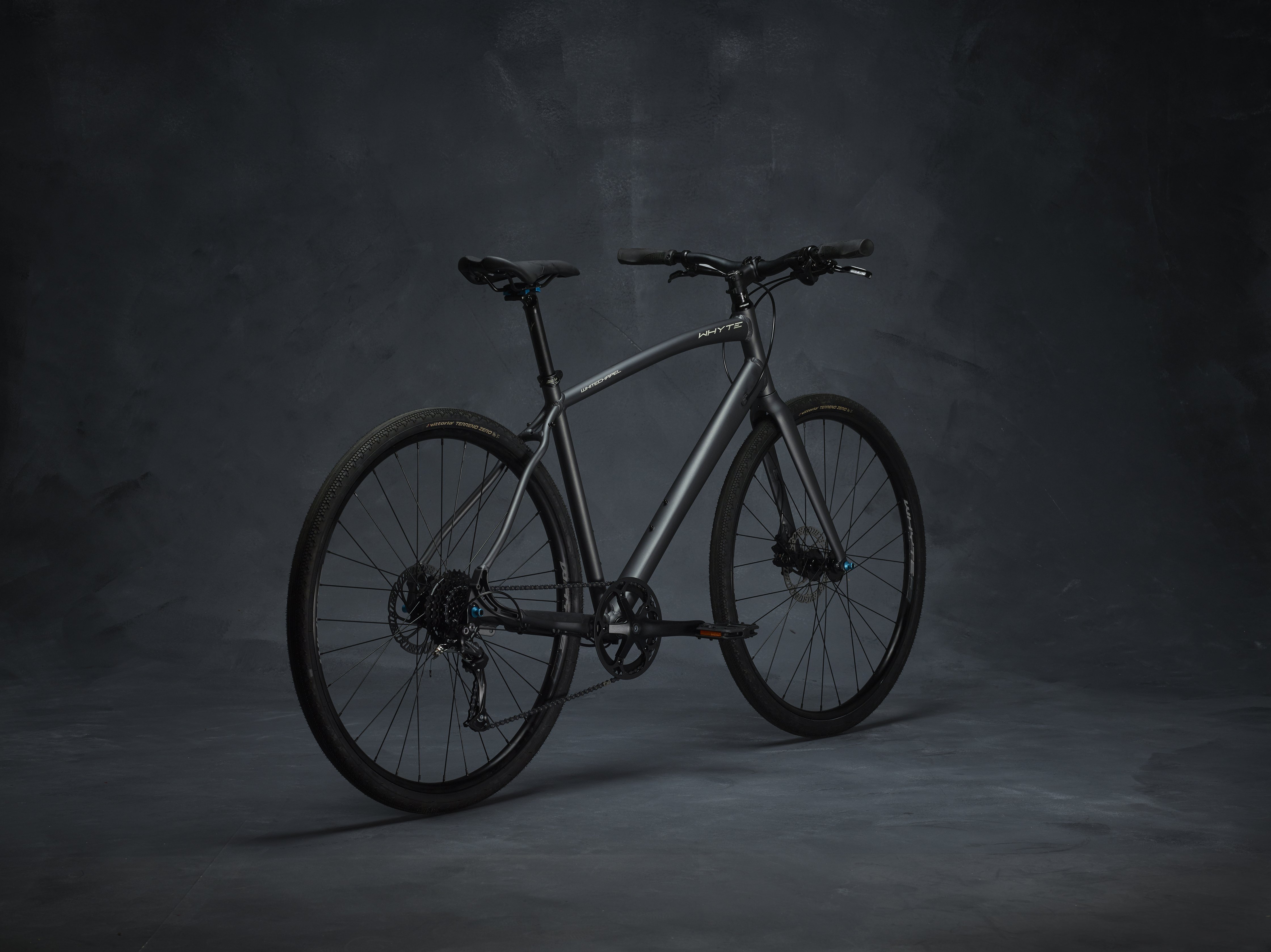

Whyte Whitechapel V2
Whyte Whitechapel V2
Whyte Whitechapel V2

Whyte Whitechapel V2



The Whitechapel is all about simplicity: a single chain ring and nine gears at the back will give years of reliable urban use.
Based on our high performance mountain bike geometry, all our Fast Urban bikes have a long wheelbase and relaxed head angle for high speed stability, and a shorter stem for excellent slow speed manoeuvrability.
A custom rear dropout allows us to mount the rear hydraulic disc brake caliper inside the rear triangle for easy fitment of a rack or mudguards

Farve
Matt Granite w. Grey-Mist trim
M
L
XL
Description
SPECIFICATION
COLOUR Matt Granite with Grey CASSETTE Shimano CS-HG-200, 11-36, 9 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
CHAIN Sunrace, 9 Speed
FORK Whyte Straight Bladed 6061 Alloy, Forged Crown, Alloy Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
CRANKSET Alloy, 42T Chainring with Alloy Chain Guard
REAR SHOCK N/A BOTTOM BRACKET Square Interface, Cartridge Bearings, 68mm
HEADSET FSA No. 23, Integrated Road, 1 1/8" Sealed Cartridge Bearings, 41mm Diameter
SEATPOST Whyte 6061 Alloy, 25mm Offset, 27.2mm x S/M/L 350mm, XL 400mm, 2 Bolt Clamp
REAR HUB Alloy, Cup & Cone, Double Seal, 32 Hole
SADDLE Whyte Custom
FRONT HUB Alloy, Cup & Cone, Double Seal, 28 Hole
HANDLEBAR Whyte 6061 Alloy, 30mm Rise, 31.8mm, 620mm Wide
SPOKES 2.0mm, PG, Black Stainless, Brass Nipples
STEM Whyte Alloy, S 45mm, M/L/XL 60mm
RIMS Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 28 Hole Front
GRIPS Whyte Custom Dual Density Lock-on
TYRE Vittoria Terreno Zero 700 x 37c, Puncture Protection
BRAKES FRONT Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing
SHIFT LEVERS Shimano Altus SL-M2010, 9 Speed
BRAKES REAR Tektro HD-M275, Hydraulic, 160mm Disc, Internal Routing
FRONT MECH N/A BRAKE LEVERS Tektro HD-M275
REAR MECH Shimano Altus RD-M2000-SGS, 9 Speed
PEDALS Fibre Reinforced Composite Platform
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice



SIZE GUIDE
S M L XL
5’1" – 5’5" 5’5" – 5’9" 5’9" – 6’1" 6’1" – 6’5"
155- 165 cm 165 – 175 cm 175 – 185 cm 185 – 197 cm
GEOMETRY
SIZE S M L XL
A
HEAD TUBE ANGLE
69.5 70 70 70
B
SEAT TUBE ANGLE
74 73.5 73 73
C
TOP TUBE HORIZONTAL
569.4 595.2 613 626.9
D
BB HEIGHT ABOVE GROUND
268
268
271.5 271.5
E
STAND OVER HEIGHT
716.5 745.5 789 817
F
WHEEL BASE
1061.4 1078.4 1094.3 1109.3
G
CHAIN STAY LENGTH
430 430 430 430
H
SEAT POST DIAMETER
27.2 27.2 27.2 27.2
I
HEAD TUBE LENGTH
145 165 185 205
J
SEAT TUBE LENGTH
406.4 444.5 495 533
STACK 612 579 593 612
REACH 409 424 432 440
