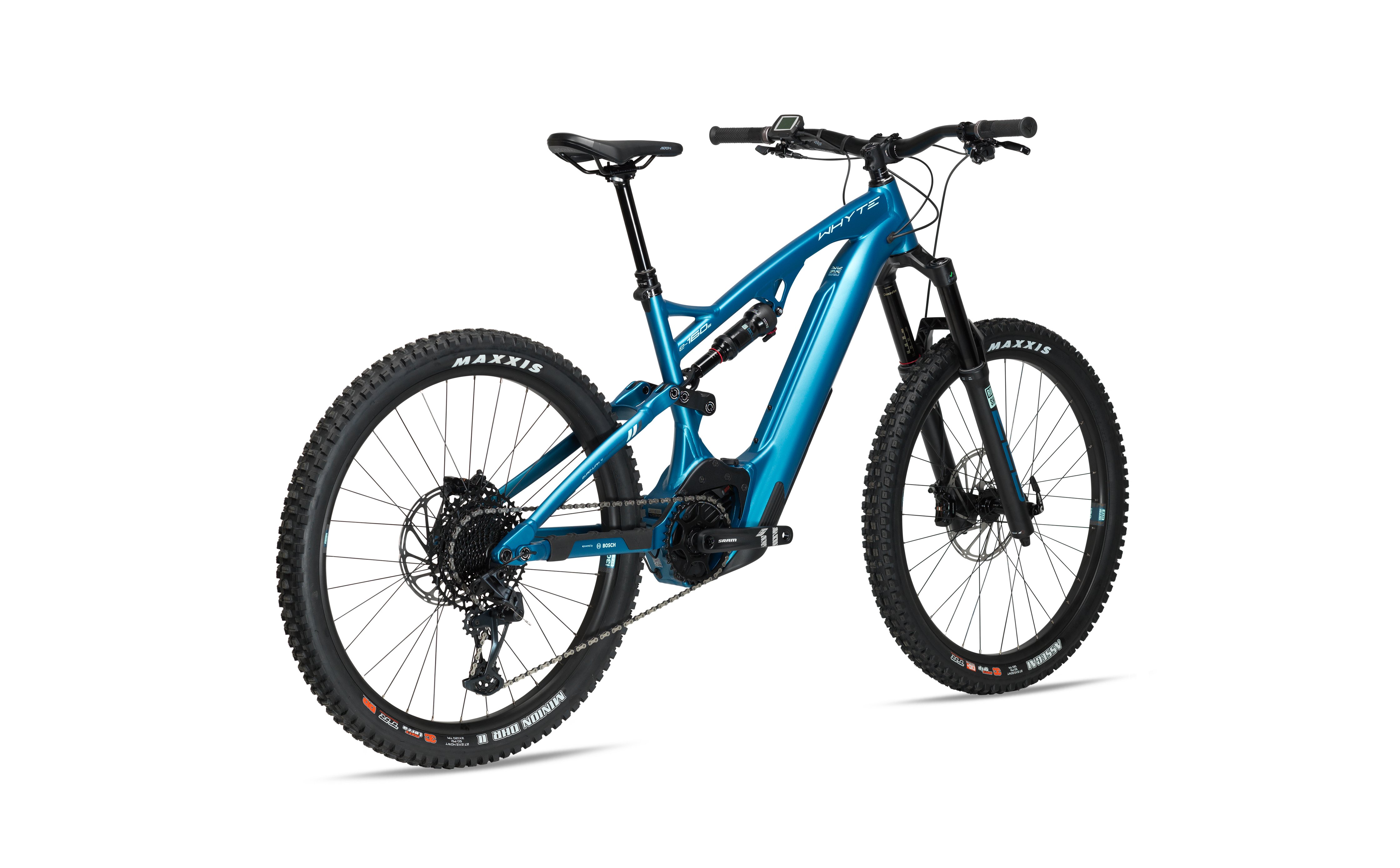

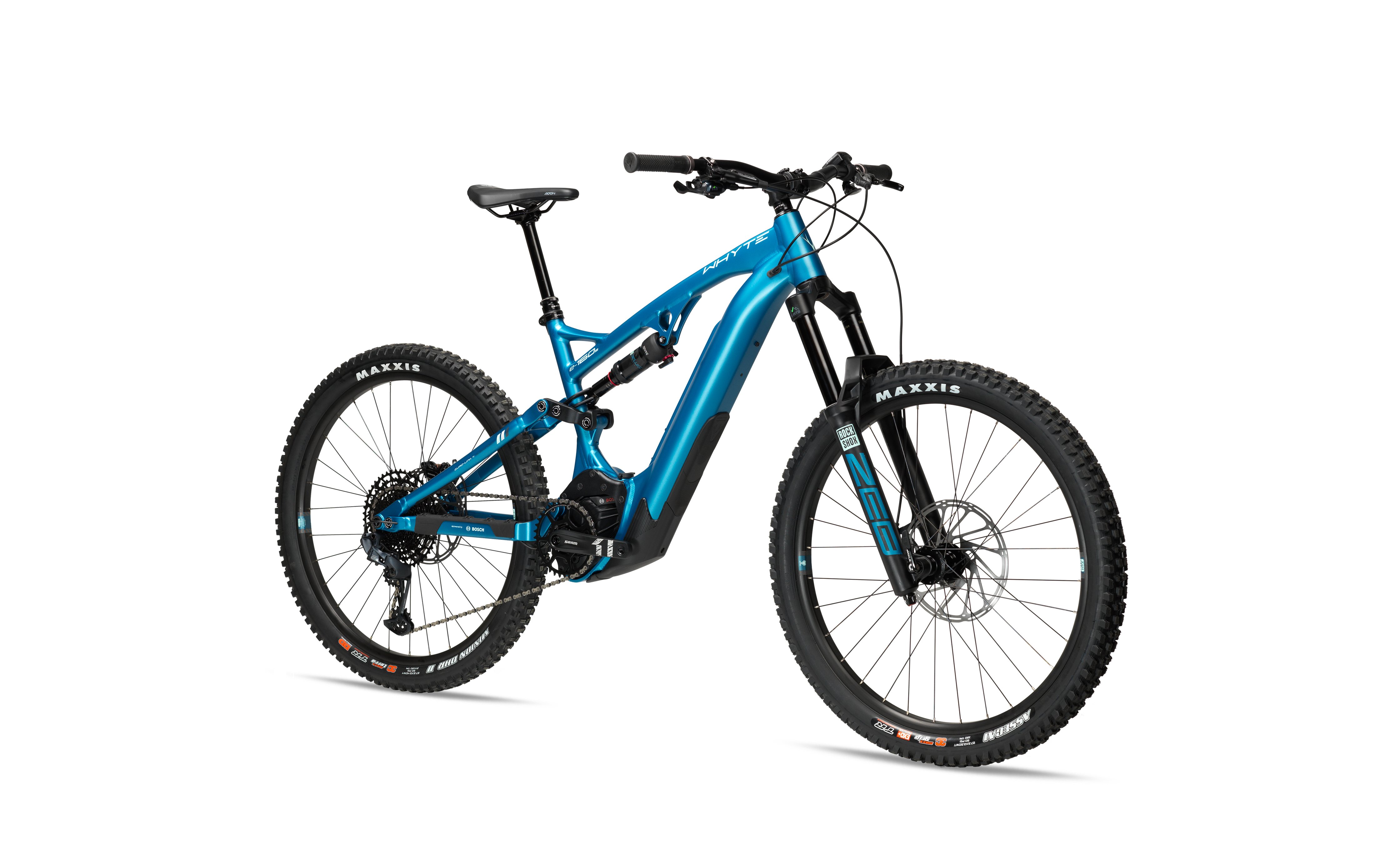

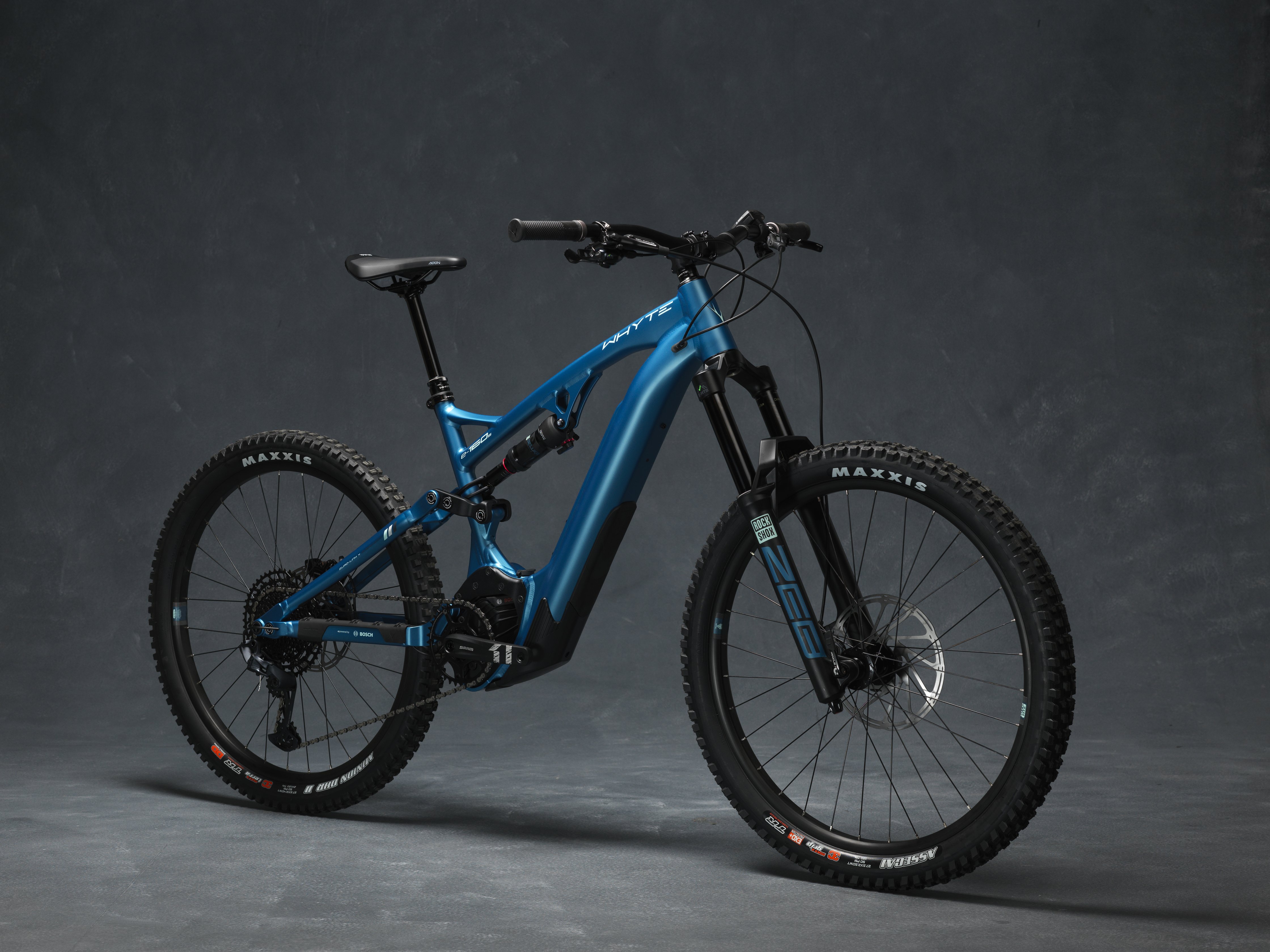

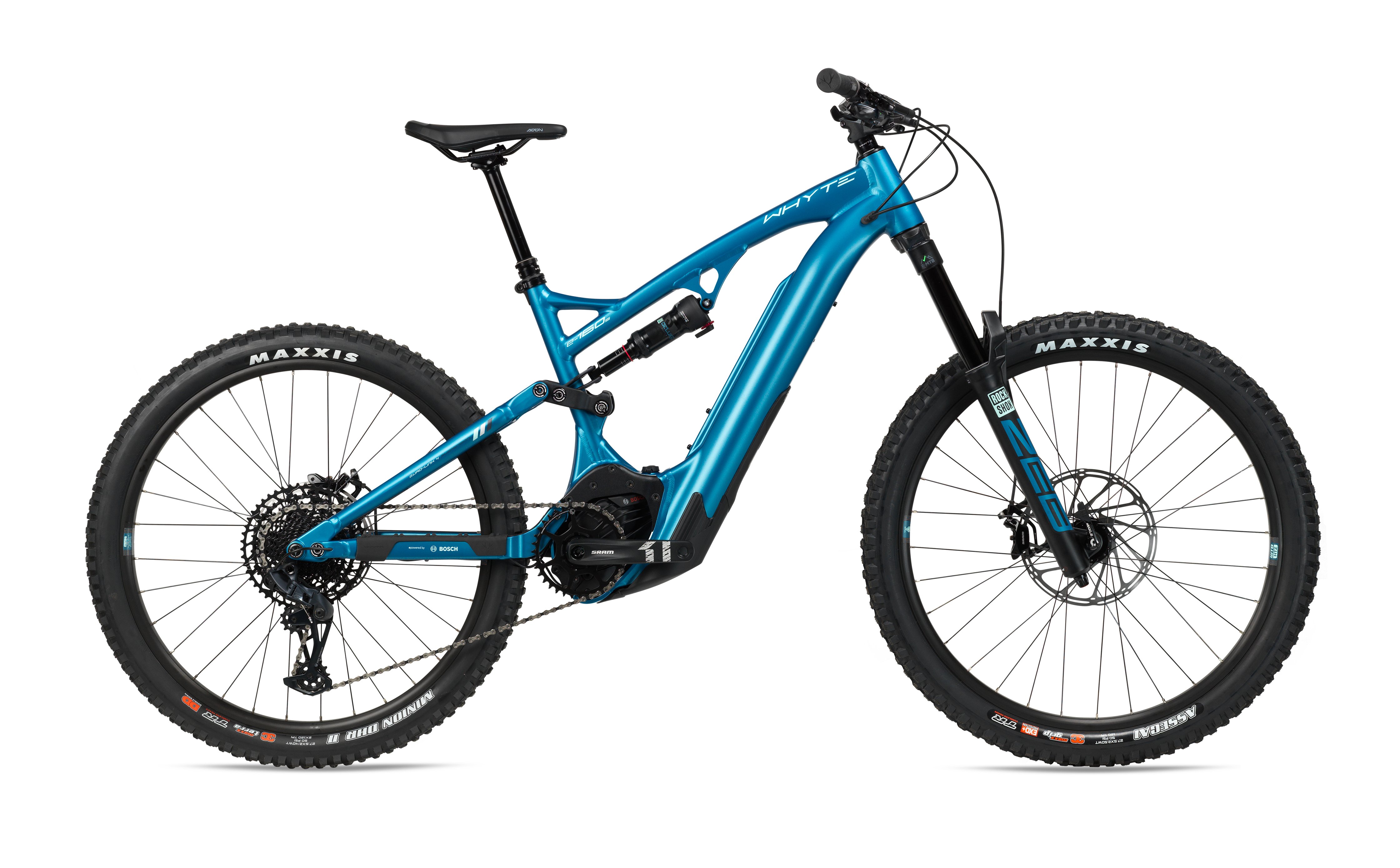

Whyte E-160 S (625Wh / N85)  - V2

Whyte E-160 S (625Wh / N85) - V2



The E-160 S is available in 5 sizes from XS to XL. The new RockShox ZEB 38mm stanchioned forks perfectly complement our proprietary OTO geometry for maximum steering control, and powerful Guide RE brakes keep the easy speed under control.


Uncompromised Whyte OTO geometry combined with an ultra-low centre of gravity means outstanding handling, balance and control. A complete eSystem from Bosch means reliability and unbeatable backup. Our "slide in" battery fitment means maximum structural integrity for minimum weight and torsional rigidity.

Matt Diesel Light Blue/Slate
S
M
L
e-BIKE SPECIFIC SPECIFICATION
MOTOR Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
BATTERY Bosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours
DISPLAY Bosch Purion



SPECIFICATION
COLOUR Matt Burnt Orange with Black & Earth
CASSETTE SRAM PG-1210 Eagle, 11-50, 12 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
CHAIN SRAM GX Eagle, 12 Speed
FORK RockShox ZEB 27.5", 160mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
CRANKSET SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 34T for Bosch Gen 4, Black
REAR SHOCK RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound, 2 position compression adjustment
BOTTOM BRACKET N/A
HEADSET FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST Whyte drop.it Adjust, 30.9mm, XS/S 120-150mm Travel, M/L 140-170mm Travel, XL 170-200mm Travel, Paddle Remote Lever
REAR HUB Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
SADDLE Whyte Custom, Triple Panel Design
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
HANDLEBAR Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
SPOKES DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
RIMS WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
GRIPS Whyte Lock-on V Grip
TYRE WTB Verdict TCS System 27.5" X 2.5" Light/High Grip, Tri-Tec triple compound High Grip, Lightweight Casing with Slash Guard, Front, WTB Verdict TCS System 27.5" X 2.5" Tough/High Grip, Tri-Tec triple compound, Fast Rolling, Enduro Casing, Rear
BRAKES FRONT SRAM Guide RE, 4 Piston with Sintered Metal Pads, 220mm Disc
SHIFT LEVERS SRAM GX-E, Single Click, MMX, 12 Speed
BRAKES REAR SRAM Guide RE, 4 Piston with Sintered Metal Pads, 200mm Disc
FRONT MECH N/A BRAKE LEVERS SRAM Guide RE, MMX
REAR MECH SRAM GX Eagle, 12 Speed
PEDALS None
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice



SIZE GUIDE
XS S M L XL
4’7" – 5’3" 5’3" – 5’6" 5’6" – 5’10" 5’10" – 6’2" 6’2" – 6’6"
145 – 160 cm 160 – 168 cm 168 – 178 cm 178 – 188 cm 188 – 198 cm
GEOMETRY
SIZE XS S M L XL
A
HEAD TUBE ANGLE
64 65
65
65
65
B
SEAT TUBE ANGLE
75.4
75.2
75
74.8
74.6
C
TOP TUBE HORIZONTAL
557.7
579.2
609.1
638.3
667.8
D
BB HEIGHT ABOVE GROUND
330
330
330
330
330
E
STAND OVER HEIGHT
792
807
822
822 824
F
WHEEL BASE
1186
1197.6
1228.5
1258.6
1289.1
G
CHAIN STAY LENGTH
442
442
442
442
442
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
112
116
130
142
155
J
SEAT TUBE LENGTH
368.3
406.4
431.8
457.2
482.6
STACK 598.1
607.3
620
630.9
642.7
REACH 410
430
455
480 505
