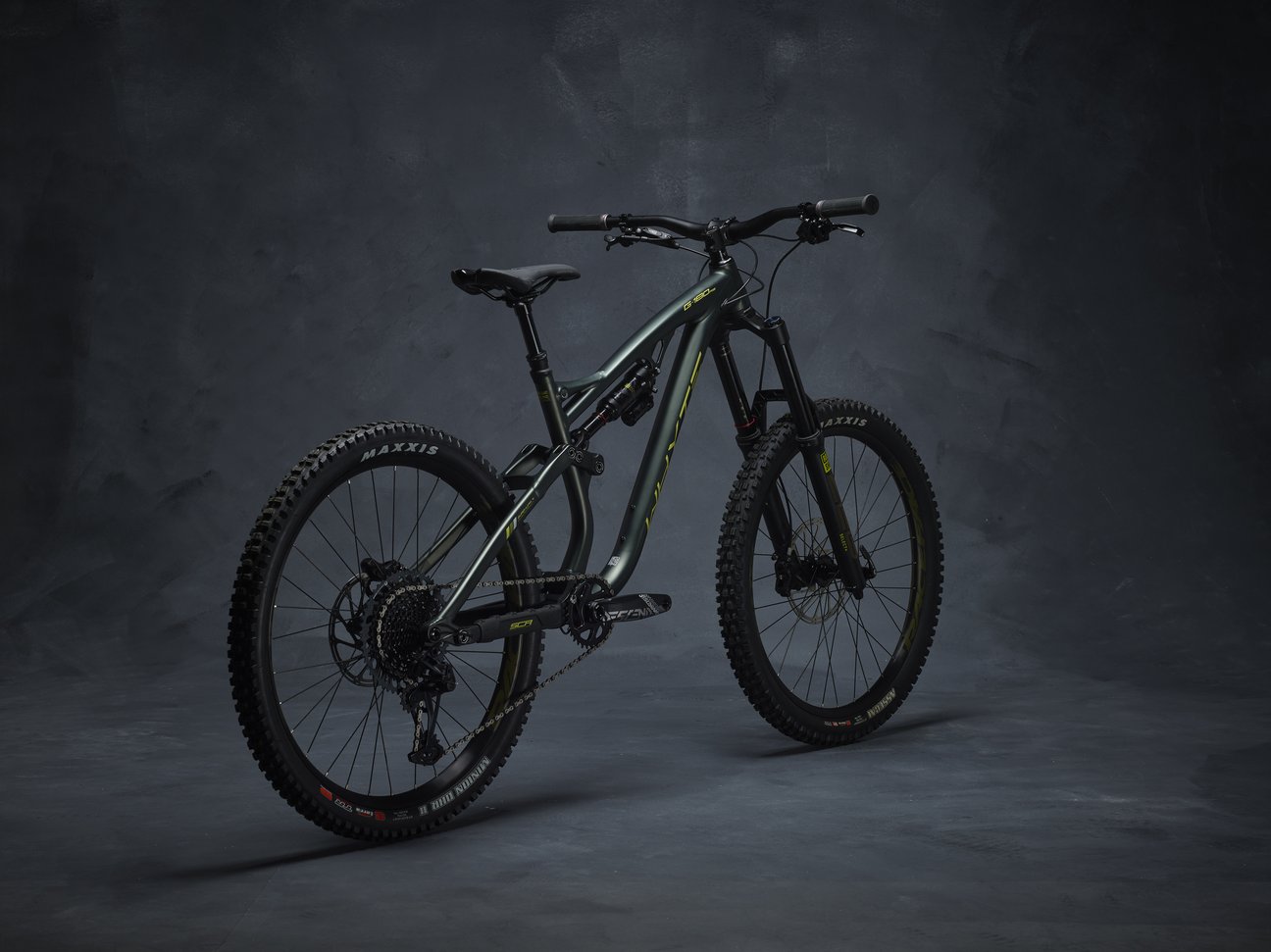

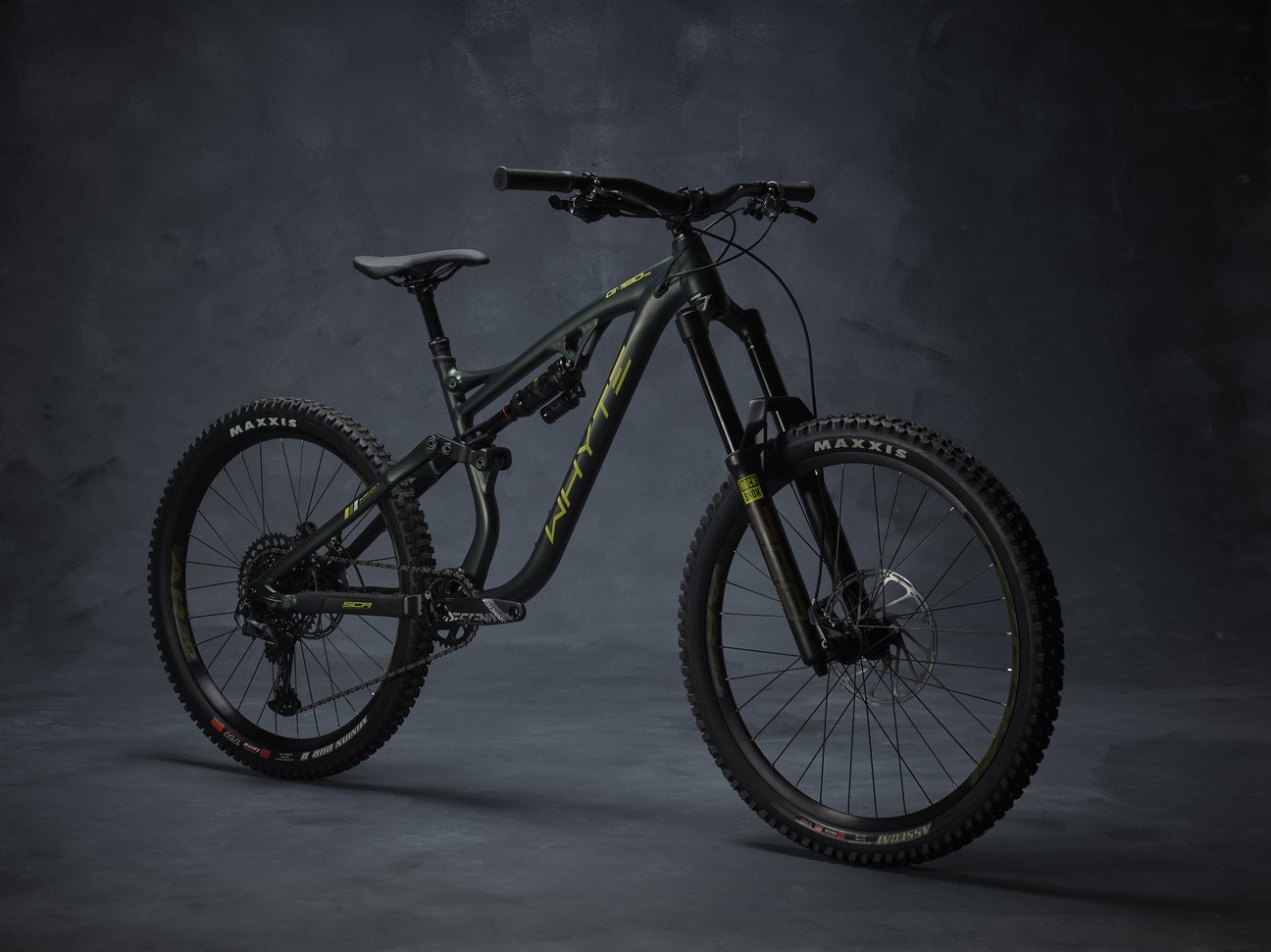

Whyte G-180 RS - 27,5 - Gravity Enduro
Whyte G-180 RS - 27,5 - Gravity Enduro
Whyte G-180 RS - 27,5 - Gravity Enduro
Whyte G-180 RS - 27,5 - Gravity Enduro

Whyte G-180 RS - 27,5 - Gravity Enduro



Using the multi-award-winning G-170 as the benchmark, the all-new G-180 frame delivers improvements in every area - the new tube-set offers more torsional stiffness and improved suspension kinematics give better small bump response.

Our 27.5 frame is built around a massive 190mm of front travel, further increasing capabilities. From a local DH trail to extreme Alpine adventures, this bike is ready for everything you can throw at it.

We have designed the geometry of the G-180 to use a 29er fork on both wheel sizes so if you want to mullet the bike, change the lower headset cup and swap in a 29er front wheel.

Farve
Matt Moss w. Yellow/Olive trim
S
M
L
XL
SPECIFICATION
COLOUR Matt Moss with Yellow & Olive
CASSETTE SRAM XG-1275 Eagle, 10-52, 12 Speed
FRAME 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, ISCG, 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, 148mm Boost Dropouts
CHAIN SRAM GX Eagle, 12 Speed
FORK RockShox ZEB Select + 29", 190mm Travel, 44mm Offset, DebonAir, Charger 2.1 RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
CRANKSET SRAM Descendant 7K Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost, 12 Speed
REAR SHOCK RockShox Super Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound, 2 position compression adjustment
BOTTOM BRACKET SRAM DUB, BSA, 73mm
HEADSET FSA No. 57 Orbit ZS Plus, Integrated, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST KS RAGEi, Dropper Seat Post Assembly: 30.9mm Dia, 442mm Length, 150mm Drop, W/Southpaw-Alloy Remote
REAR HUB Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 9 deg Micro Engagement 4 Pawl, 32 Hole
SADDLE Whyte Custom, Dual Density, Triple Panel Design
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
HANDLEBAR Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
SPOKES DT Swiss Factory 2.0mm, Black Stainless, Brass Nipples
STEM Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
RIMS Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
GRIPS Whyte Lock-on V Grip
TYRE Maxxis Assegai WT, TR, 27.5" x 2.5" 60TPI, EXO+ Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Minion DHR WT, TR, 27.5" x 2.4" 120TPI, Double Down casing , Dual Compound, Rear
BRAKES FRONT SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
SHIFT LEVERS SRAM GX Eagle, MMX, 12 Speed
BRAKES REAR SRAM Code R, 4 Piston with Sintered Metal Pads, 200mm Disc, Internal Routing
FRONT MECH N/A BRAKE LEVERS SRAM Code R, MMX
REAR MECH SRAM GX Eagle, 12 Speed
PEDALS None
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
S M L XL
5’3" – 5’7" 5’7" – 5’11" 5’11" – 6’3" 6’3" – 6’6"
160 – 169 cm 169 – 179 cm 179 – 189 cm 189 – 197 cm
GEOMETRY
SIZE S M L XL
A
HEAD TUBE ANGLE
64
64
64
64
B
SEAT TUBE ANGLE
75.9
75.6
75.3
75.1
C
TOP TUBE HORIZONTAL
571
602
635
668
D
BB HEIGHT ABOVE GROUND
344
344
344
344
E
STAND OVER HEIGHT
829
836
848
858
F
WHEEL BASE
1215
1249
1284
1318
G
CHAIN STAY LENGTH
440
440
440
440
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
88
92
106
121
J
SEAT TUBE LENGTH
406.4 431.8 457.2 482.6
STACK 627
631
643
657
REACH 425
455
483
510
