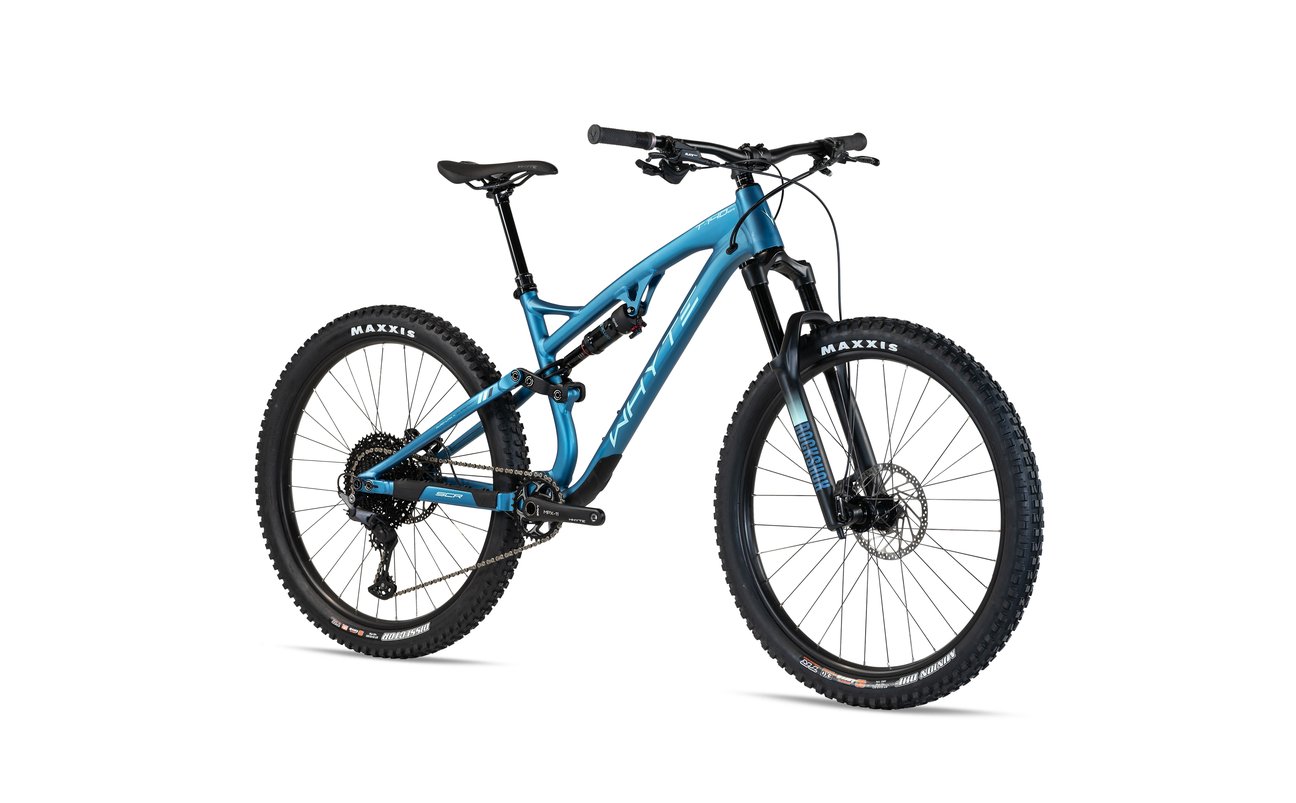

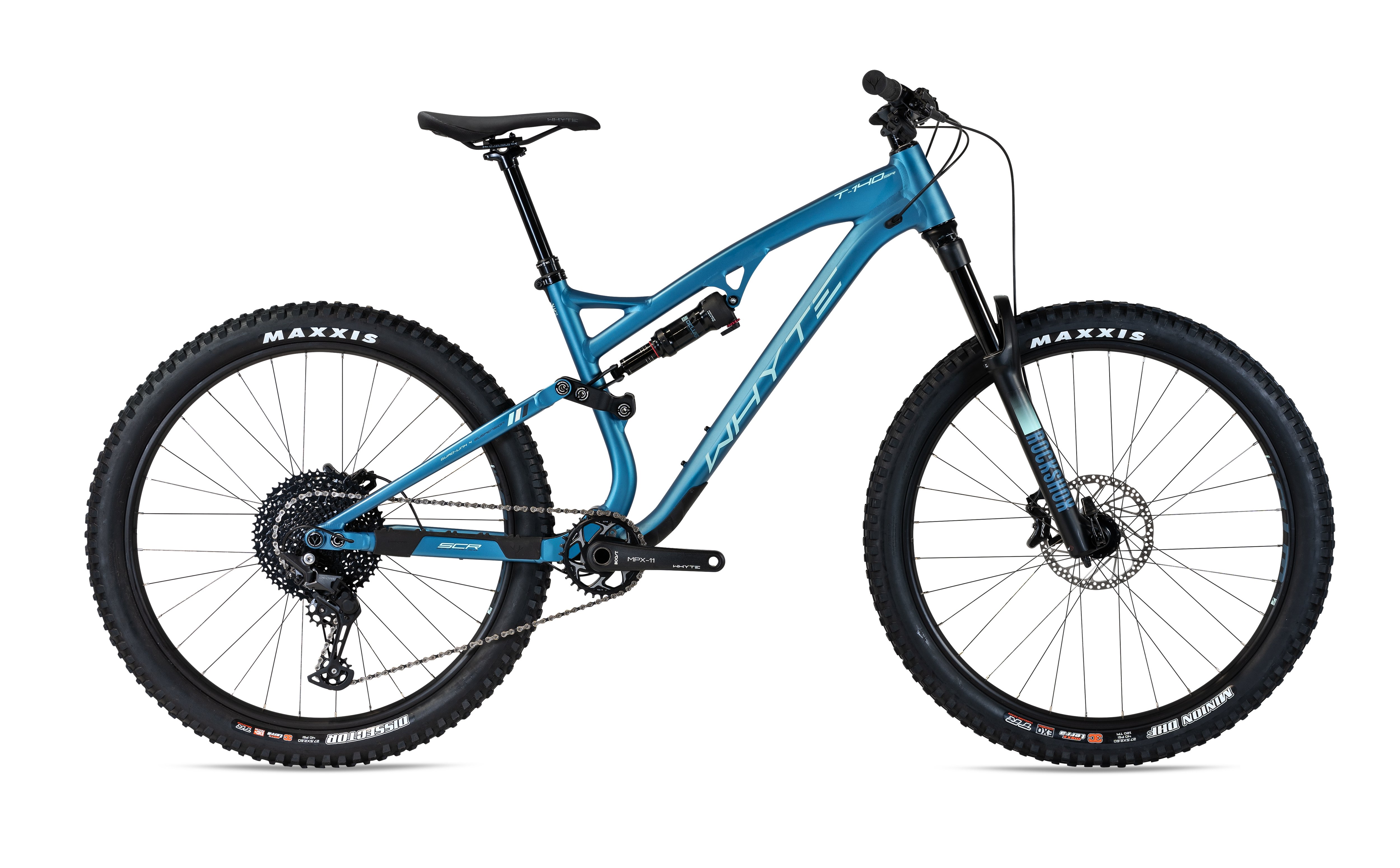

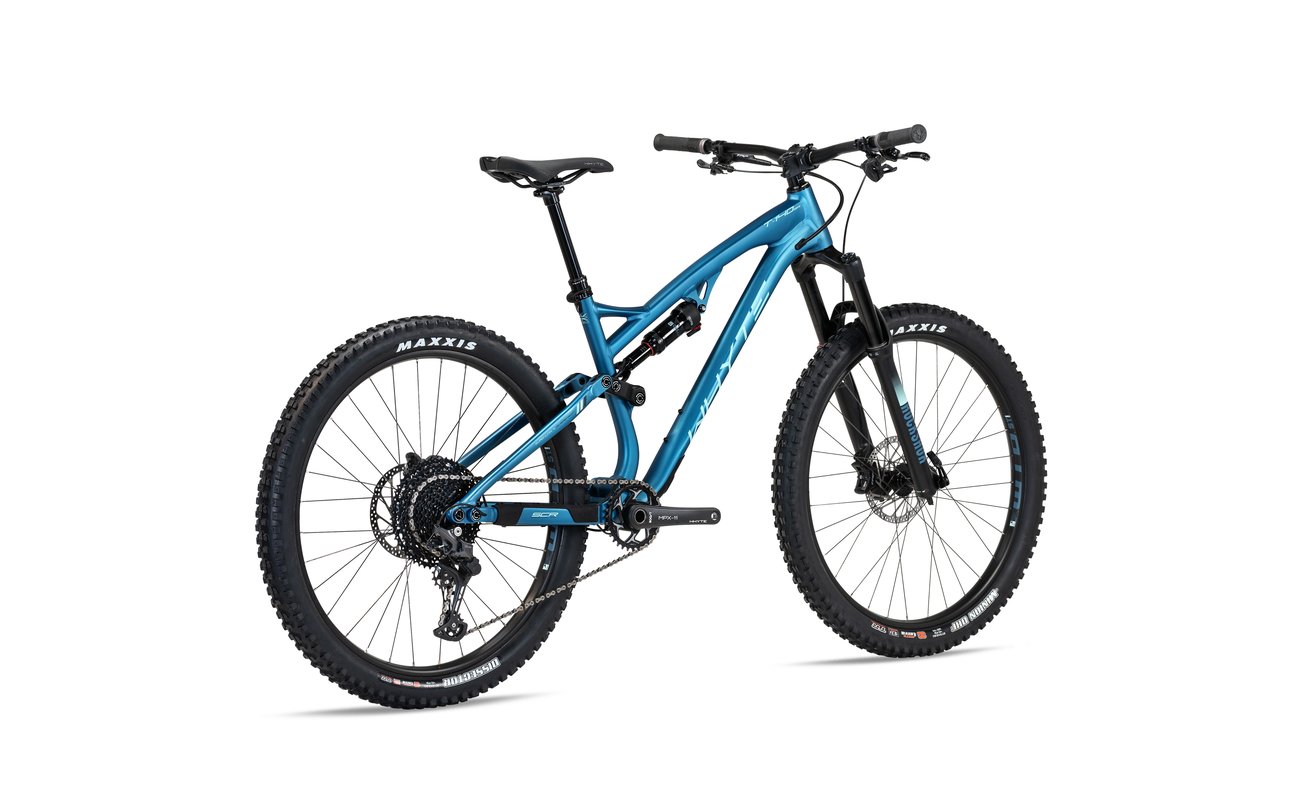

WHYTE T-140 SR - 27,5 - Trail
WHYTE T-140 SR - 27,5 - Trail
WHYTE T-140 SR - 27,5 - Trail
WHYTE T-140 SR - 27,5 - Trail

WHYTE T-140 SR - 27,5 - Trail



The new T-140 platform is all about maximum fun, wherever you ride. A versatile all-rounder with big-hit capabilities, it combines climbing efficiency with a hooligan attitude to descents, using every bit of its 140mm of suspension travel to keep you grinning from ear to ear.

The T-140 OTO geometry was designed around a shorter 37mm offset fork. The extra front end grip this creates allows us to make the most of the 140mm travel fork, fully exploiting the capabilities of the chassis, the more neutral handling and the 2.6" tyres.

The SR combines our latest geometry and frame tech with RockShox suspension and a Shimano Deore 11 speed drive-train resulting in a massively capable, great value bike.

Farve
Matt Diesel w. Light Blue/Slate trim
XS
S
M
L
XL

SPECIFICATION
COLOUR Matt Diesel Light Blue/Slate
CASSETTE SunRace CSMS8, 11-51, 11 Speed
FRAME 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, 148mm Boost Dropouts
CHAIN SunRace, 11 Speed
FORK RockShox 35 Gold RL 27.5", 140mm Travel, 37mm Offset, DebonAir, Motion Control Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
CRANKSET Whyte, Forged 2pcs Cranks, Direct Mount alloy 32T Narrow Wide Boost Chainring, 170mm, Boost, 11 Speed
REAR SHOCK RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression
BOTTOM BRACKET BSA, Cartridge Bearings, 73mm
HEADSET FSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST Trans-X, 30.9mm, XS 100mm Travel, S 125mm Travel, M/L/XL 150mm Travel, Shimano Remote Lever
REAR HUB Alloy, Double Sealed Cartridge Bearings, Centre Lock 12mm x 148mm Boost Thru Axle, 32 Hole
SADDLE Whyte Custom, Dual Density, Triple Panel Design
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
HANDLEBAR Whyte 6061 Alloy, 31.8mm, XS/S 15mm Rise, 760mm Wide, M/L/XL, 30mm Rise 780mm Wide
SPOKES DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM Whyte Gravity Stem, 35mm Extension
RIMS WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS Whyte Lock-on Enduro Grip
TYRE Maxxis Minion DHF TR 27.5" x 2.6" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 27.5" x 2.6" 60TPI, EXO+ Sidewall Protection, Rear
BRAKES FRONT TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc
SHIFT LEVERS Shimano Deore M5100, I-Spec EV 11 Speed, Black
BRAKES REAR TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc, Internal Routing
FRONT MECH N/A BRAKE LEVERS TRP Slate Evo
REAR MECH Shimano Deore RD-M5100-SGS, Shadow Plus, 11 Speed
PEDALS None
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice



SIZE GUIDE
XS S M L XL
4’7" – 5’3" 5’3" – 5’6" 5’6" – 5’10" 5’10" – 6’2" 6’2" – 6’6"
145 – 160 cm 160 – 168 cm 168 – 178 cm 178 – 188 cm 188 – 198 cm
GEOMETRY
SIZE XS S M L XL
A
HEAD TUBE ANGLE
65.9 (65.3)
65.9 (65.3)
65.9 (65.3)
65.9 (65.3)
65.9 (65.3)
B
SEAT TUBE ANGLE
74.9
74.7
74.5
74.3
74.1
C
TOP TUBE HORIZONTAL
555
583
612 640 669
D
BB HEIGHT ABOVE GROUND
330 (322)
330 (322)
330 (322)
330 (322)
330 (322)
E
STAND OVER HEIGHT
788
796 802 808 815
F
WHEEL BASE
1139
1168
1198
1228
1256
G
CHAIN STAY LENGTH
435
435
435 435 435
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
100
112 125 140 150
J
SEAT TUBE LENGTH
368.3
406.4 431.8 457.2 482.6
STACK 593
594
616
630
639
REACH 408
432 456 480 504
