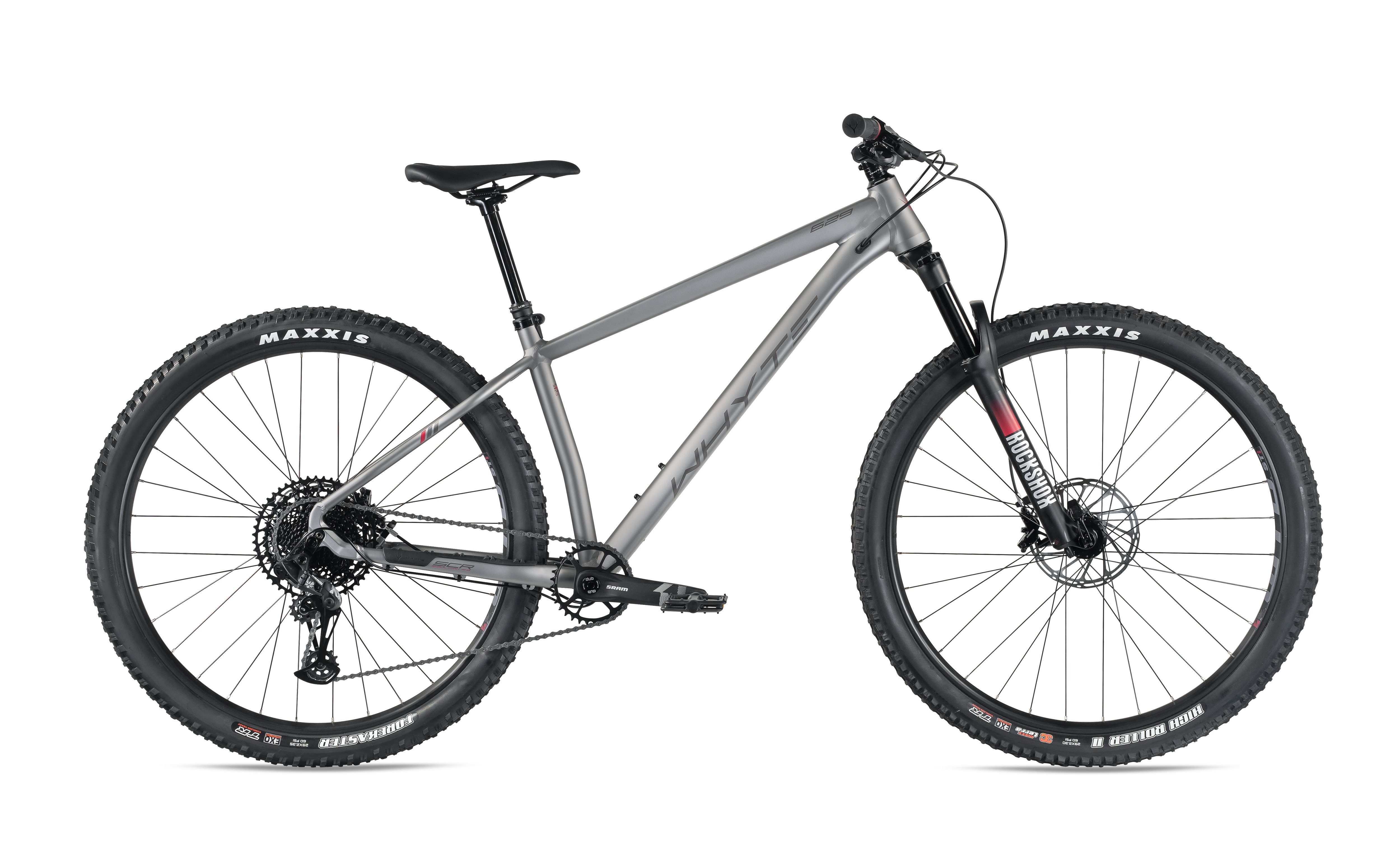

Whyte 629 - 29" - Trailhardtail

Whyte 629 - 29" - Trailhardtail



The new 629 comes with a Whyte Drop.it II Adjust seat post allowing the rider to tune the dropper posts travel to fit them better, with 30mm of available adjustment in 5mm increments.

Other component upgrades include a RockShox 35 Gold fork and Shimano's new Deore M6100 group set, with 2 clamp I-Spec II set up for a clean looking handle bar.

Our proprietary OTO & SCR technology bring increased balance and control to the 29er trail hardtail category.

Farve
Matt Zinc Mouse/Rose
M
L
XL
Description
SPECIFICATION
COLOUR Matt Zinc Mouse/Rose
CASSETTE SRAM PG-1230 Eagle, 11-50, 12 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Internal Cable Routing with BBX63, Chainstay Post Mount Dropouts and 12mm X 148mm Boost Dropouts
CHAIN SRAM NX Eagle, 12 Speed
FORK RockShox 35 Gold RL 29", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
CRANKSET SRAM X1 Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost 12 Speed
REAR SHOCK N/A BOTTOM BRACKET SRAM DUB, BSA, 73mm
HEADSET FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
SEATPOST KS RAGEi, 30.9mm, M 150mm, L/XL 170mm Travel, KS South Paw MMX Remote Lever
REAR HUB Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
SADDLE Whyte Custom
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
HANDLEBAR Whyte 6061 Alloy, 15mm Rise, 31.8mm, 780mm Wide
SPOKES DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM Whyte Alloy, 35mm Extension
RIMS WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
GRIPS Whyte Lock-on Enduro Grip
TYRE Maxxis High Roller II TR 29"x 2.3" 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Forekaster TR 29" x 2.35" 60TPI, EXO Sidewall Protection, Dual Compound, Rear
BRAKES FRONT SRAM Guide T, 4 Piston, 180mm Disc
SHIFT LEVERS SRAM NX Eagle, MMX, 12 Speed
BRAKES REAR SRAM Guide T, 4 Piston, 180mm Disc, Internal Routing
FRONT MECH N/A BRAKE LEVERS SRAM Guide T, Matchmaker
REAR MECH SRAM NX Eagle, 12 Speed
PEDALS Fibre Reinforced Composite Platform
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
M L XL
5’6" – 5’10" 5’10" – 6’2" 6’2" – 6’6"
168 – 178 cm 178 – 188 cm 188 – 198 cm
GEOMETRY
SIZE M L XL
A
HEAD TUBE ANGLE
65
65
65
B
SEAT TUBE ANGLE
74.5 74.5 74.5
C
TOP TUBE HORIZONTAL
639
663
690
D
BB HEIGHT ABOVE GROUND
300
300
300
E
STAND OVER HEIGHT
805
819
838
F
WHEEL BASE
1215
1240
1270
G
CHAIN STAY LENGTH
450
450
450
H
SEAT POST DIAMETER
30.9 30.9 30.9
I
HEAD TUBE LENGTH
115 120 135
J
SEAT TUBE LENGTH
444.5 495.7 533.4
STACK 640
644
658
REACH 460
485
508
