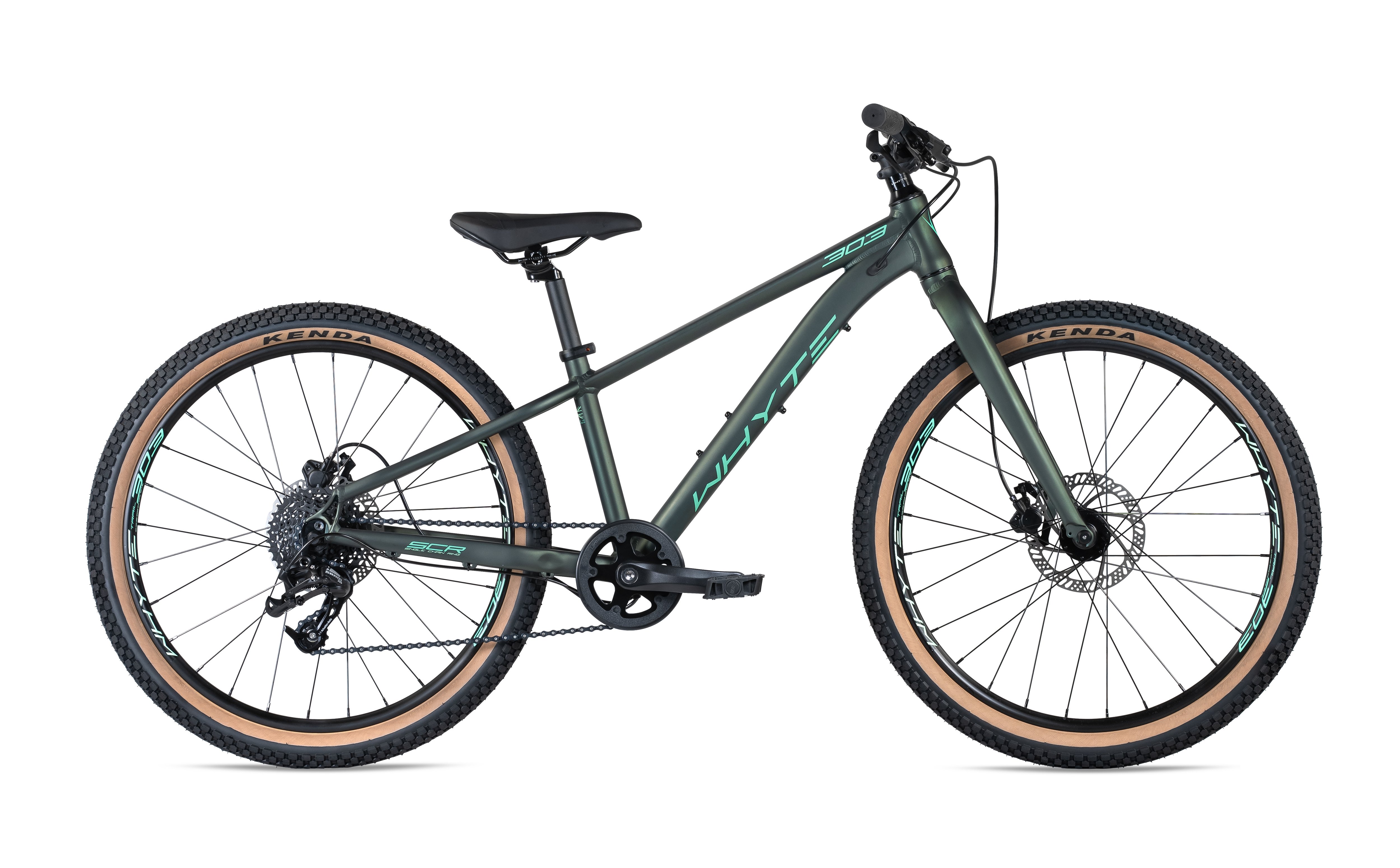

Whyte 303 - 24" - V2 - Junior Hardtail

Whyte 303 - 24" - V2 - Junior Hardtail

Varenummer: W303V2
6.399,00 DKK

CONTROL AND STABILITY TO TAME THE TRAIL The 302 & 303 takes the trail taming characteristics of Whyte geometry and combines them with a light-weight frame and fork, built for 24” wheels. Recommended for riders between 120 and 140cm tall.

Description
SPECIFICATION
COLOUR Matt Moss Aqua/Mint
CASSETTE SunRace 8 Speed, 11-34T
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX, IS Mount Dropouts
CHAIN SunRace, 8 Speed
FORK Whyte, 6061 Alloy, Rigid 24" Jr, IS disc mount
CRANKSET Alloy 6061, 28T Narrow Wide Chainring, Double Guard, 140mm Crank Length
REAR SHOCK N/A
BOTTOM BRACKET JIS Square Interface, Cartridge Bearings
HEADSET FEIMIN H807B, Semi Integrated, 1 1/8" Caged Bearings
SEATPOST Whyte Jr, 6061 Alloy, Single Bolt, 27.2x250mm
REAR HUB Alloy, Cup & Cone, Double Seal, 28 Hole
SADDLE Whyte Jr Mid Custom
FRONT HUB Alloy, Cup & Cone, Double Seal, 28 Hole
HANDLEBAR Whyte 6061, Riser Bar, 31.8mm, 620mm Wide
SPOKES 2.0mm, PG, Black Stainless, Brass Nipples
STEM Whyte Alloy, 35mm
RIMS Whyte Trail-303, 28 Hole
GRIPS Whyte Custom
TYRE KENDA K-RAD 24" x 2.3"
BRAKES FRONT Tektro HD-M275, Hydraulic, 160mm Rotor
SHIFT LEVERS SRAM X4 Trigger, 8-SPEED
BRAKES REAR Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
FRONT MECH N/A
BRAKE LEVERS Tektro HD-M275, Adjustable Short Reach
REAR MECH SRAM X4 Medium Cage, 8 speed
PEDALS Jr Fibre Reinforced Composite Platform
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice



SIZE GUIDE
ONE SIZE
4’1"- 4’7"
120 - 140 cm
GEOMETRY
SIZE ONE SIZE
A
HEAD TUBE ANGLE
67
B
SEAT TUBE ANGLE
75.5
C
TOP TUBE HORIZONTAL
497
D
BB HEIGHT ABOVE GROUND
265
E
STAND OVER HEIGHT
627
F
WHEEL BASE
1005
G
CHAIN STAY LENGTH
417
H
SEAT POST DIAMETER
27.2
I
HEAD TUBE LENGTH
100
J
SEAT TUBE LENGTH
305
STACK 474
REACH 375
