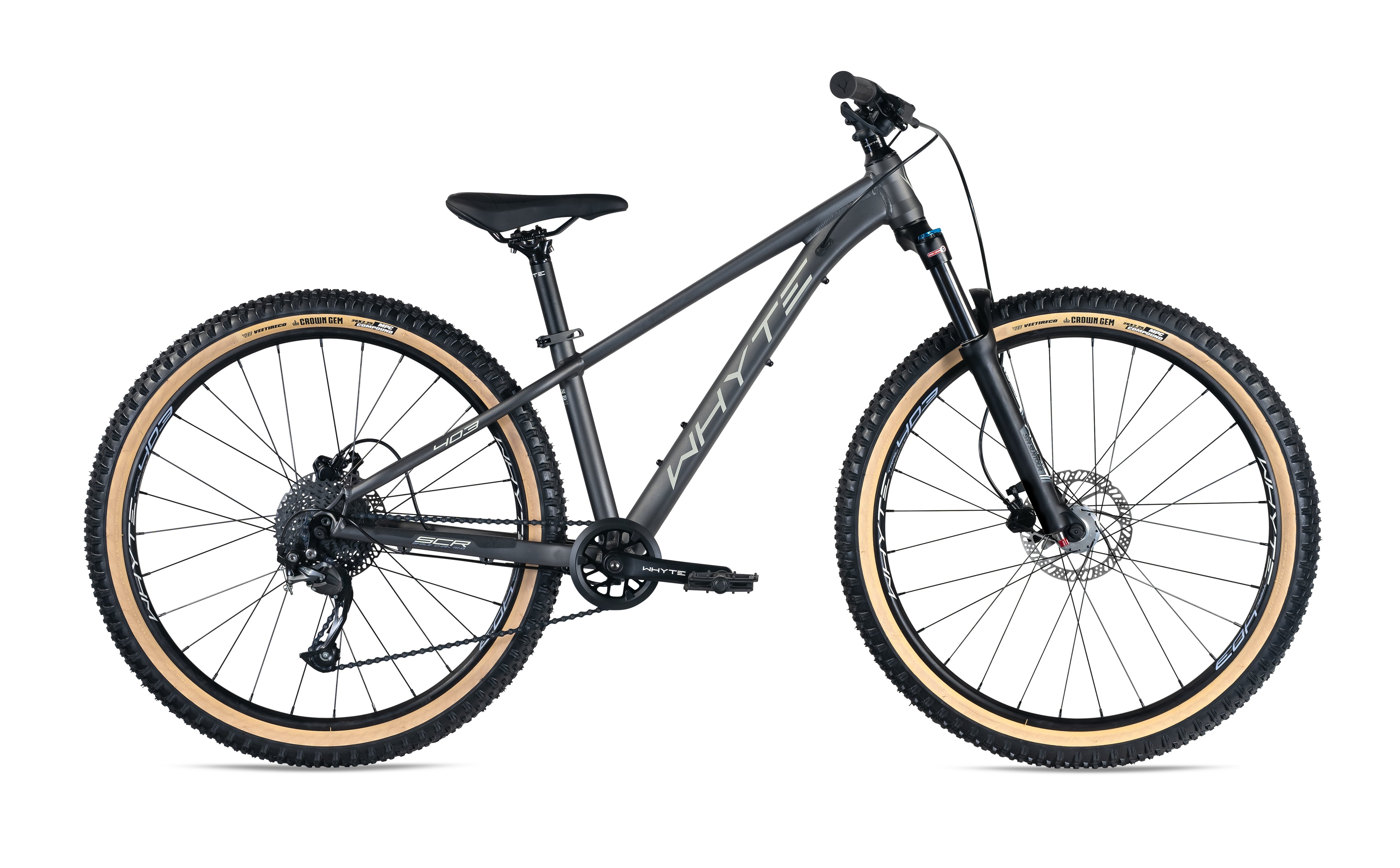

Whyte 403 - 26" -V3 - Junior Hardtail
Whyte 403 - 26" -V3 - Junior Hardtail
Whyte 403 - 26" -V3 - Junior Hardtail

Whyte 403 - 26" -V3 - Junior Hardtail


Farve
Cement Gloss Khaki/Sand
Description
SPECIFICATION
COLOUR Cement Gloss Khaki/Sand
OR
Matt Granite Grey/Mist
CASSETTE SunRace CSM90, ED Black 11-36, 9 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts
CHAIN SunRace, 9 Speed
FORK SR Suntour XCR, 100mm Travel, Hydro Lock-out, Air Spring, Adjustable Rebound, Post Mount
CRANKSET Alloy 6061, 28T Narrow Wide Chainring, Single guard, 152mm Crank Length
REAR SHOCK N/A
BOTTOM BRACKET Square Interface, Cartridge Bearings, 73mm
HEADSET FEIMIN H807B, Semi Integrated, 1 1/8" Caged Bearings
SEATPOST Whyte 6061 Alloy, 15mm Offset, 30.9mm x 300mm, 2 Bolt Clamp
REAR HUB Alloy, Cup & Cone, Double Seal, 28 Hole
SADDLE Whyte Jr Mid Custom
FRONT HUB Alloy, Cup & Cone, Double Seal, 28 Hole
HANDLEBAR Whyte 6061 Alloy, 25mm Rise, 31.8mm, 660mm Wide
SPOKES 2.0mm, PG, Black Stainless, Brass Nipples
STEM Whyte Alloy, 35mm
RIMS Whyte Trail-403, 28 Hole
GRIPS Whyte Lock-on V Grip
TYRE VEE TIRE Co, Crown Gem 26" x 2.25"
BRAKES FRONT Tektro HD-M275, Hydraulic, 160mm Rotor
SHIFT LEVERS Shimano Altus SL-M2010, Trigger Shifter, 9 Speed
BRAKES REAR Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
FRONT MECH N/A
BRAKE LEVERS Tektro HD-M275
REAR MECH Shimano Altus RD-M2000-SGS, 9 Speed
PEDALS Fibre Reinforced Composite Platform
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice



SIZE GUIDE
ONE SIZE
4’5" - 5’0"
135 - 152 cm
GEOMETRY
SIZE ONE SIZE
A
HEAD TUBE ANGLE
66.5
B
SEAT TUBE ANGLE
76
C
TOP TUBE HORIZONTAL
520
D
BB HEIGHT ABOVE GROUND
295
E
STAND OVER HEIGHT
706
F
WHEEL BASE
1057
G
CHAIN STAY LENGTH
410
H
SEAT POST DIAMETER
30.9
I
HEAD TUBE LENGTH
95
J
SEAT TUBE LENGTH
331
STACK 560
REACH 380
