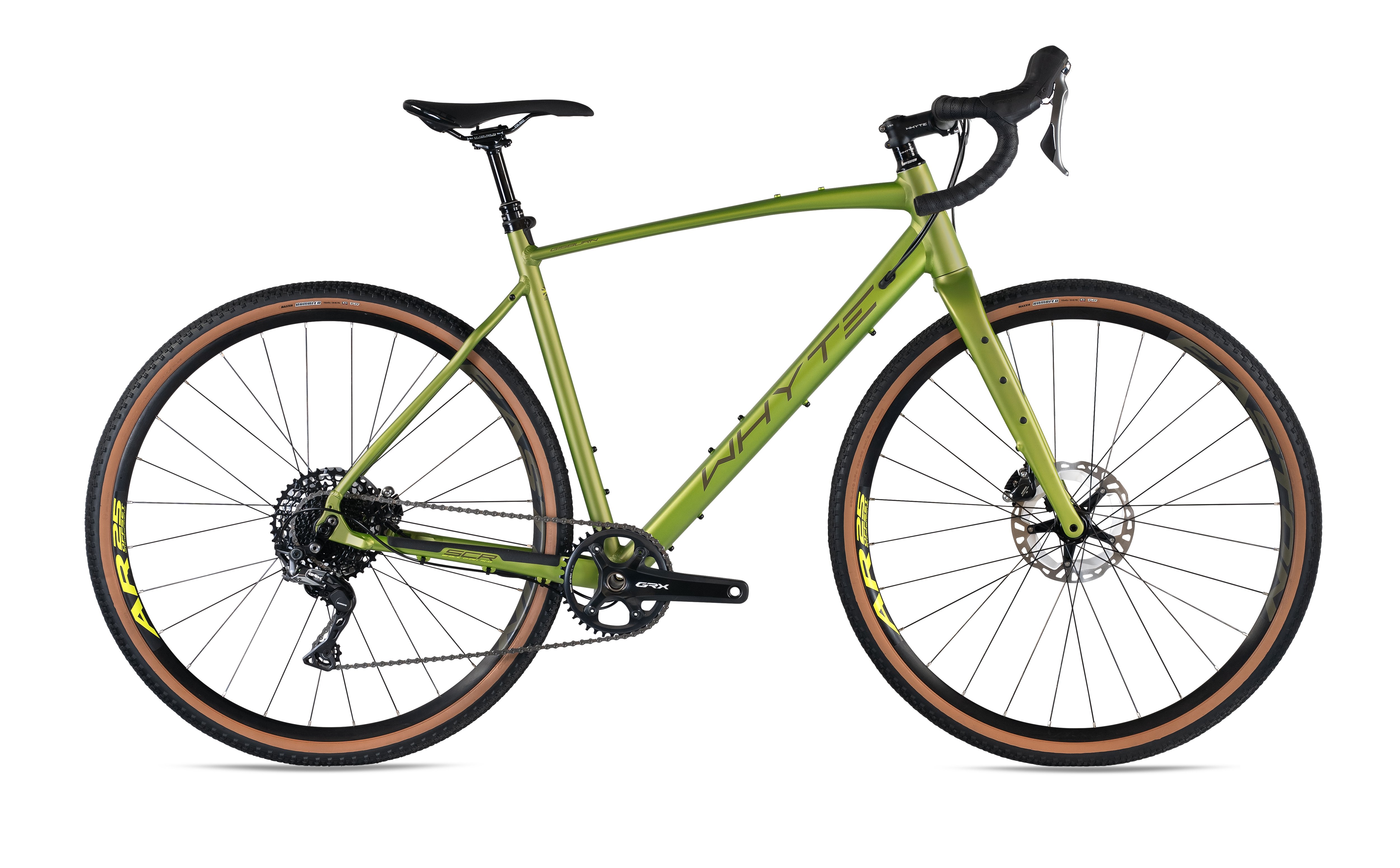

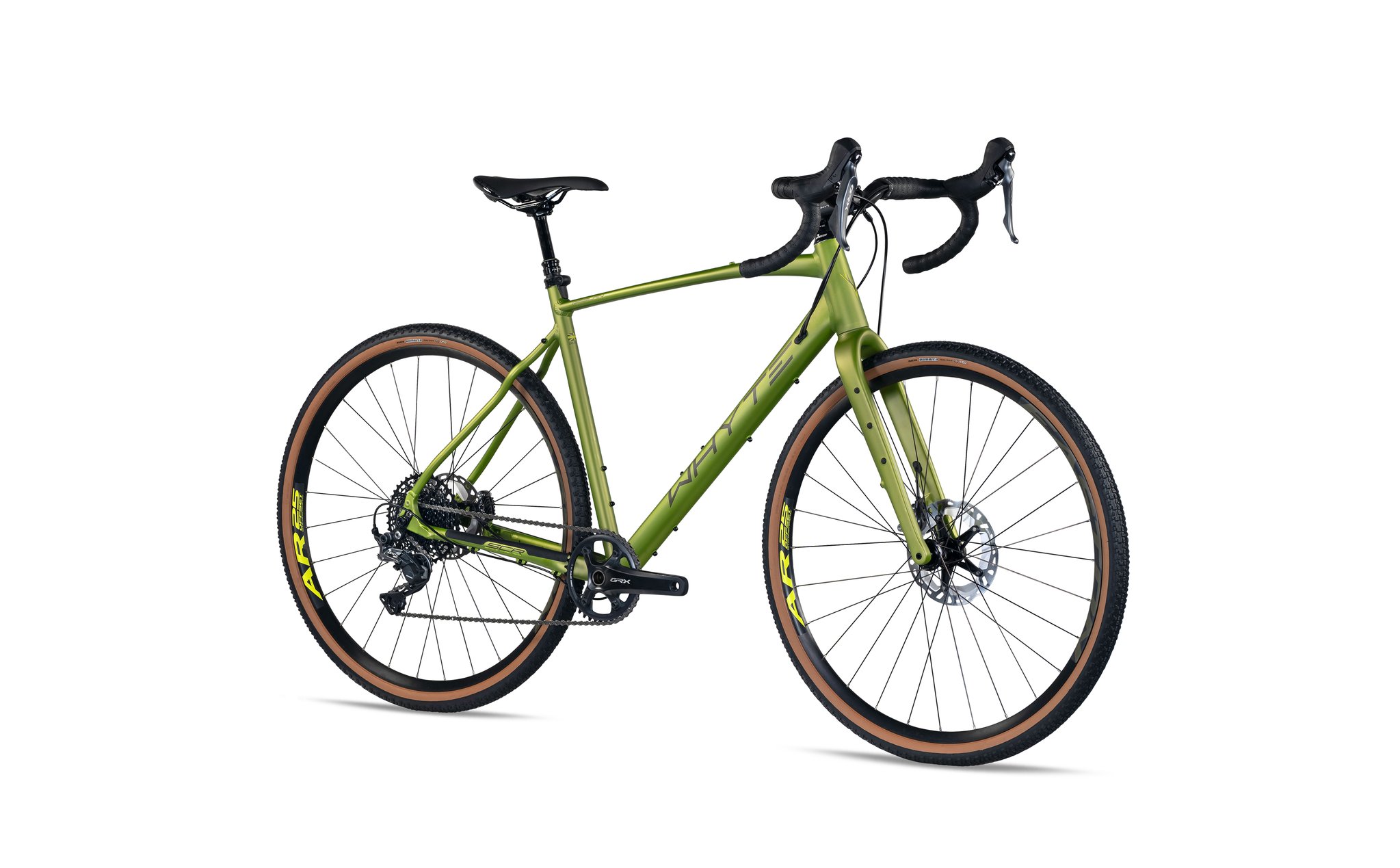

Whyte Gisburn V4 Gravel Adventure
Whyte Gisburn V4 Gravel Adventure
Whyte Gisburn V4 Gravel Adventure

Whyte Gisburn V4 Gravel Adventure


Farve
Matt Olive w. Khaki/Lime trim
58cm
50cm
52
54
56
Description
SPECIFICATION
COLOUR Matt Olive Khaki/Lime
CASSETTE Shimano CS-M7000, 11-42, 11 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
CHAIN Shimano CN-HG601-11, 11 Speed
FORK Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
CRANKSET Shimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
REAR SHOCK N/A BOTTOM BRACKET Shimano SM-BBR60, 68mm
HEADSET FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOST Trans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left Lever
REAR HUB Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole
SADDLE Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
FRONT HUB Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key
HANDLEBAR Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
SPOKES DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEM Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
RIMS Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
GRIPS Whyte Anti Slip, Cross Bar Tape
TYRE Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound
BRAKES FRONT Shimano GRX BR-RX810, 180mm Flat Mount Centre-Lock Disc, Internal Routing
SHIFT LEVERS Shimano GRX ST-RX810, 11 Speed
BRAKES REAR Shimano GRX BR-RX810, 160mm Flat Mount Centre-Lock Disc, Internal Routing
FRONT MECH N/A BRAKE LEVERS Shimano GRX ST-RX810, Hydraulic
REAR MECH Shimano GRX RD-RX812, Shadow Plus, 11 Speed
PEDALS None
WEIGHT TBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
50 52 54 56 58
5’2" – 5’5" 5’5" – 5’8" 5’8" – 5’11" 5’11" – 6’2" 6’2" – 6’5"
157 – 165 cm 165 – 172 cm 172 – 180 cm 180 – 187 cm 187 – 195 cm
GEOMETRY
SIZE 50 52 54 56 58
A
HEAD TUBE ANGLE
70 70 70 70 70
B
SEAT TUBE ANGLE
74 74 74 74 74
C
TOP TUBE HORIZONTAL
559
568
597
606
624
D
BB HEIGHT ABOVE GROUND
277 277 277 277 277
E
STAND OVER HEIGHT
784
801
818 835
852
F
WHEEL BASE
1032
1042
1072
1081
1102
G
CHAIN STAY LENGTH
425
425 425 425 425
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
130 145 160 175 190
J
SEAT TUBE LENGTH
500 520 540 560 580
STACK 570
584
598
612
626
REACH 396 400.4
425 430 445
